T3D-001-005 Concrete Hardstanding Centre Strip Kit for Peco SL-100

Trackside 3D SKU: T3D-001-005

No reviews

$8.00 USD

Available Now!

The Concrete hardstanding centre strip kit is designed for Peco SL-100 (Wooden Sleeper type). The kit is an easy way to create realistic hardstanding between the rails for motive power depots (railway depots), maintenance yards, engine sheds, distribution depots etc. The kit is designed to sit on top of Peco SL-100 wooden sleepers and minimize the gap between the hardstanding and the rail for a very realistic yet functional look.

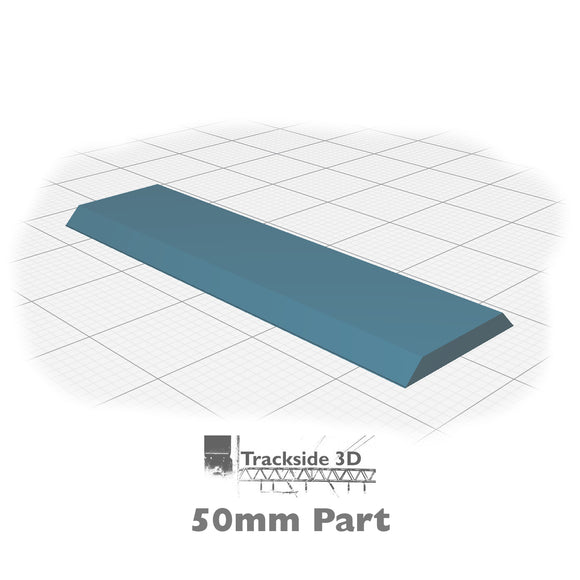

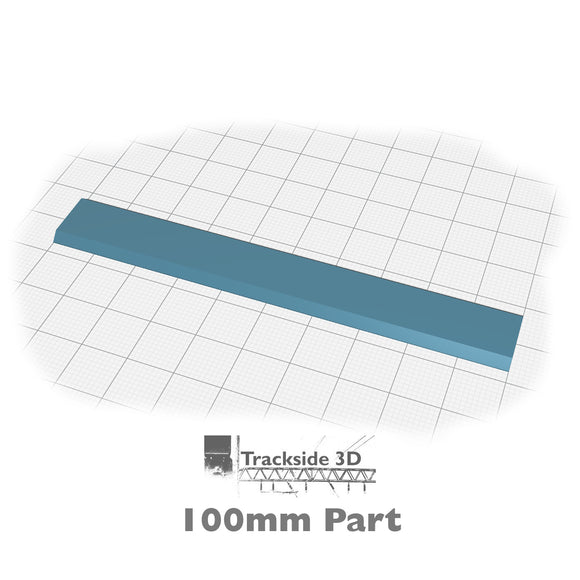

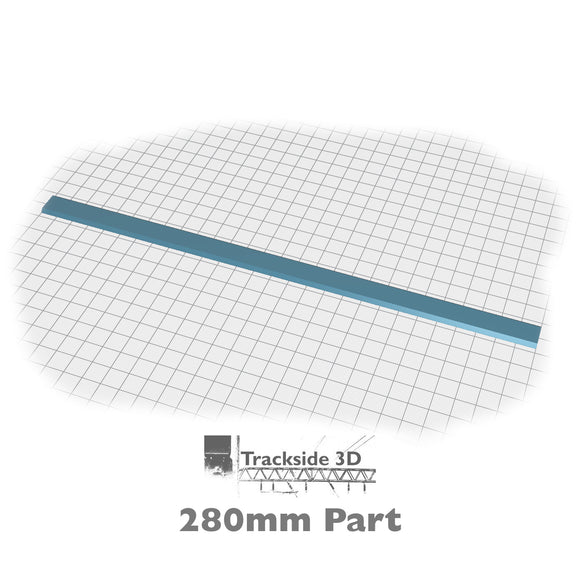

The kit comes with straight sections in 50mm, 100mm, 200mm and 280mm lengths.

This kit works really well with concrete / cement textured PLA.

This kit has been tested with modern coaching and loco stock such as Hornby HST Mk3 coaches and Oxford Rail Mk3A coaches. Older stock with wider wheel flanges may require additional trimming with a craft knife.

When loaded into Cura or another slicer, the model will default to the correct position for printing (upside down, with the upper wider part closest to the base). When printed, you would remove the brim and install on your layout with the narrow piece against the sleepers.



Dimensions:

  • 15mm x 50mm x 2mm
  • 15mm x 100mm x 2mm
  • 15mm x 200mm x 2mm
  • 15mm x 280mm x 2mm

Estimated Print Time:

  • 50mm: 22 minutes
  • 100mm: 43 minutes
  • 200mm: 1 hour 24 minutes
  • 280mm: 1 hour 57 minutes

Material Usage:

  • 50mm: 2g (0.58m)
  • 100mm: 3g (1.13m)
  • 200mm: 7g (2.25m)
  • 280mm: 9g (3.13m)
  1. Trackside3D Small or Medium Sized Object Profile
  2. Supports should be disabled
  3. Object should be printed with the wider (top of standing) on the bed (default)
  4. Brim build plate adhesion should be used
  5. In-fill density of 80% is recommended (30% to 100% possible)
  6. Recommend Gray Cement / Concrete Textured PLA for best results
  7. Layer height of 0.1 to 0.12mm recommended
  8. Print on tape where possible for improved texture
  9. Carefully remove the brim with a craft knife
